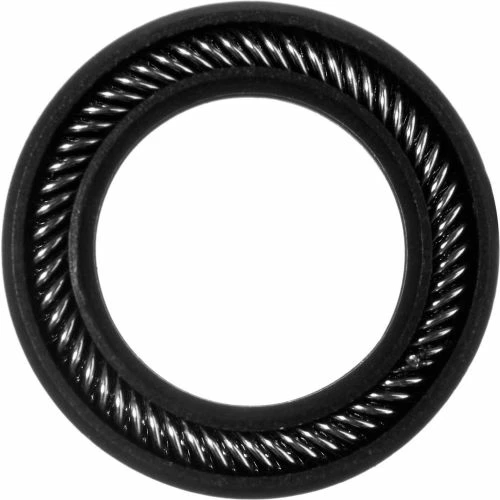

USA Sealing Graphite Filled PTFE Spring Energized Rod Seal for .75" Rod or 1" Piston Bore
Original price was: $39.91.$27.94Current price is: $27.94.
- Top-Notch Quality
- Elevate Your Shopping Experience
- Protecting Your Payment Information
- Service with a smile, always online.
Spring Energized Seals are made of chemical resistant high temperature PTFE that is supported with a spring to help maintain its shape and sealing force. They are used as alternatives to rotary shaft seals, rod seals, and piston seals, and provide greater sealing power in harsh environments. Graphite filled seals have greater wear resistance and strength compared to seals without a filler. Excellent wear and extrusion resistance in liquids, steam, and other severe conditions.
| Bore Diameter | 1" |
|---|---|
| Groove Width | .188 in |
| Groove Diameter (Rod) | 1." |
| Groove Diameter (Bore) | .750" |
| Rod Diameter | .75 in |
| Max Speed | 9.6 rpm |
| Color Family | Black |
| Temperature Range | -100 to 450 () °F |
| Material | Graphite Filled PTFE/301SS Spring |
| Package Quantity | 1 |
| Manufacturers Part Number | ZUSASES-28 |
| Brand | USA Sealing |
| Max Pressure | 1000 psi |
